WiTech E1 is a full telemetry which includes both Ethernet and radio channels. This combination was made to meet production demands for working in various conditions. What is more, the set up won't need much effort as there are no sophisticated settings. All you need to do is to connect cameras and RCP/RMBs to the respective blocks and work
What's more you can use USB cable to connect Remote block to the PC and control your cameras with the software that resembles all familiar RCP design. Commands from our software or RCP are sent the Remote block via Ethernet interface and then transmitted to the Camera Block, which is sending commands to the cameras via Sony interface.
The camera unit is powered by the camera remote 8pin, which also aides data transmission and makes it very convenient. Given it's light weight and tripod thread, fixing the camera would be simple and easy. As an option Anton Bauer/V-lock mounts are also available for those who would need them.
Specification

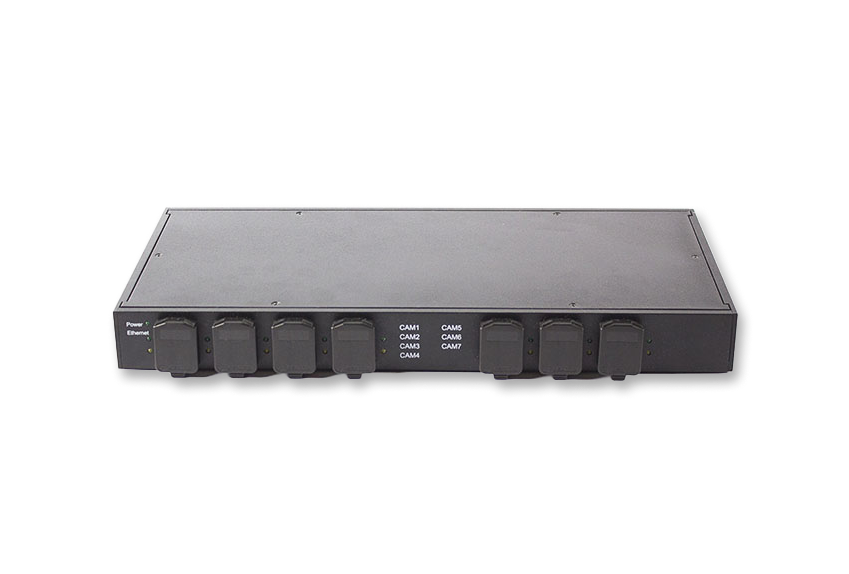

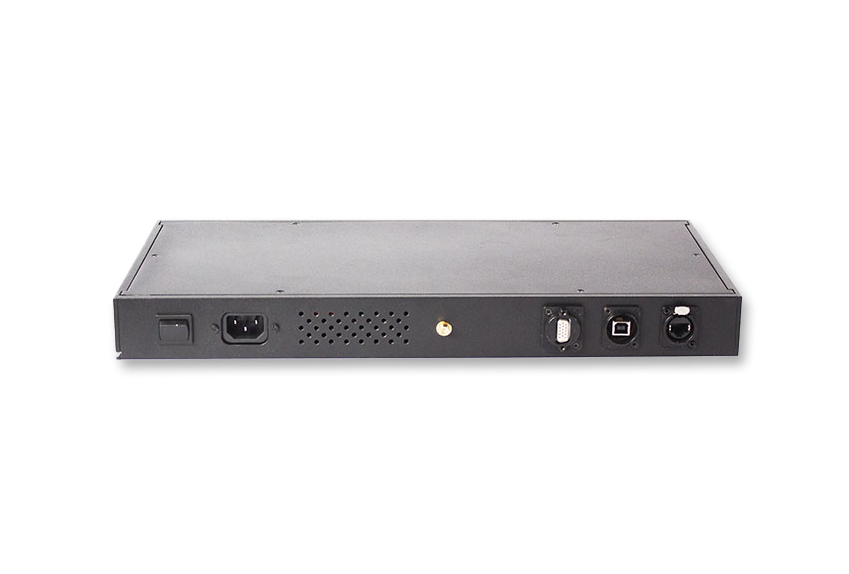

Camera Module
7xRJ45 Neutrik(for camera)
1xRF In SMA-F
Green\Red Tally Outputs DB15F
USB connector(for PC)
RJ45 Neutrik Ethernet
Power In 180-230V AC(IEC320-C14)
Base Module
8xRJ45 Neutrik(for RCP/RMB)
Green\Red Tally Intputs DB15F
USB connector(for PC)
RJ45 Neutrik Ethernet
Power In 180-230V AC(IEC320-C14)
RF(2400)*
Frequency 2.4GHz
Modulation GMSK
TX Power 1W
Range 400-500m/1300-1700ft
RX Sensitivity -94dBm
TX data 500kbps
RF(900)*
Frequency 900MHz
Modulation GMSK
TX Power 200mW
Range 400-500m/1300-1700ft
RX Sensitivity -94dBm
TX data 200kbps
Physical
Camera Block W 422mm, D 197mm,
H 44mm
2kg/4.4lbs
RCP/RMB Block W 422mm, D 197mm, H 44mm
2kg/4.4lbs
