WiTech C1

– IP to Sony 700 protocol/Sony 700 protocol to IP
– Canon-A(B)/Canon-A(B)
– DreamChip Atom cameras
– 3 GPIO (embeded as Tally and Call)
– No handshakes outside converter
– PoE/external power supply/8-pin(Sony)
– RC/RCP/RM-B can be powered via converter's 8-pin
Send a query

WiTech C1 is an RS422 to Sony 700 protocol converter, which allows you to use wired point-to-point telemetry. The set up is very simple - all you need is to connect one of the units to your camera, and the other to RCP or RMB

WiTech C1 is built as 2 separate units connected to each other via RS422. One of the units receives commands from RCP/RMB via Sony 700 Protocol and converts them into RS422. Then the data is transmitted to the 2nd converter, which converts it back to Sony 700 Protocol.

Importantly, handshake for Sony 700 Protocol is processed securely within the converters. This was included to reduce pressure on the RS422 interface, which allows the system to transfer data on lower baud rates.

WiTech C1 is an RS422 to Sony 700 protocol converter, which allows you to use wired point-to-point telemetry. The set up is very simple - all you need is to connect one of the units to your camera, and the other to RCP or RMB

WiTech C1 is built as 2 separate units connected to each other via RS422. One of the units receives commands from RCP/RMB via Sony 700 Protocol and converts them into RS422. Then the data is transmitted to the 2nd converter, which converts it back to Sony 700 Protocol.

Importantly, handshake for Sony 700 Protocol is processed securely within the converters. This was included to reduce pressure on the RS422 interface, which allows the system to transfer data on lower baud rates.


One of the units is powered by the camera’s 8pin remote, assisting convenient data transmission. The other unit is powered locally and can also power RCP/RMB.

Additionally WiTech C1 allows 4 GPIO signals to be sent, which can be used to send information to and from the camera. This can be used for signals like tally. Moreover, GPIO signals can be embedded into Sony 700 Protocol as red/green tally or call.

One of the units is powered by the camera’s 8pin remote, assisting convenient data transmission. The other unit is powered locally and can also power RCP/RMB.

Additionally WiTech C1 allows 4 GPIO signals to be sent, which can be used to send information to and from the camera. This can be used for signals like tally. Moreover, GPIO signals can be embedded into Sony 700 Protocol as red/green tally or call.

Ways of connection

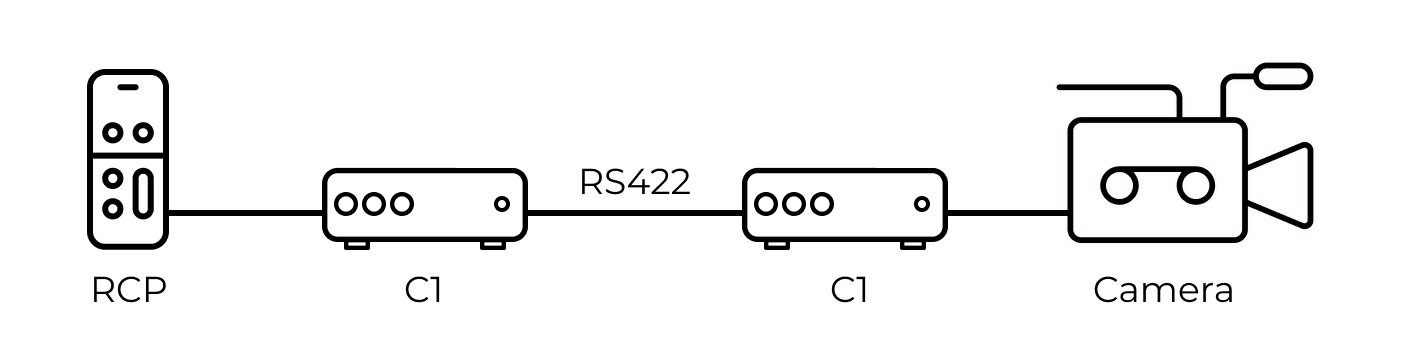

Direct connection

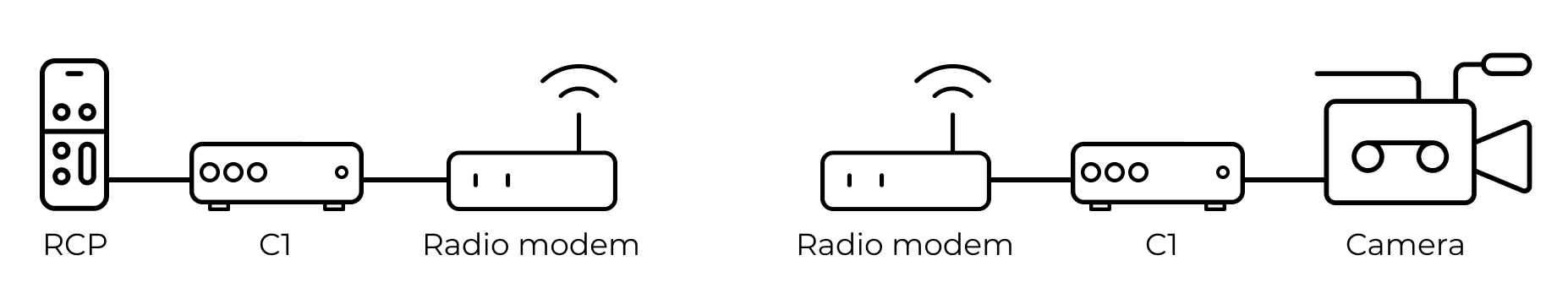

Connection via radio-modem

Specification

  • Converter

    RJ45 (for RS422)
    4 GPIO DB9
    USB connector (for PC)
    DC power 10-30V
    MXR 8-pin (Sony 700 Protocol)

  • Physical

    W 83mm, D 83mm, H 24mm
    150g/0.33lbs
